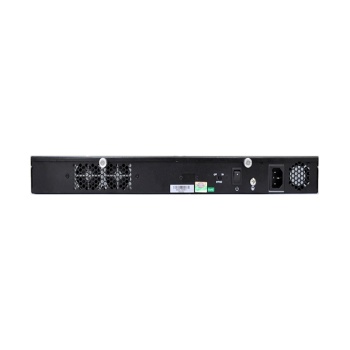

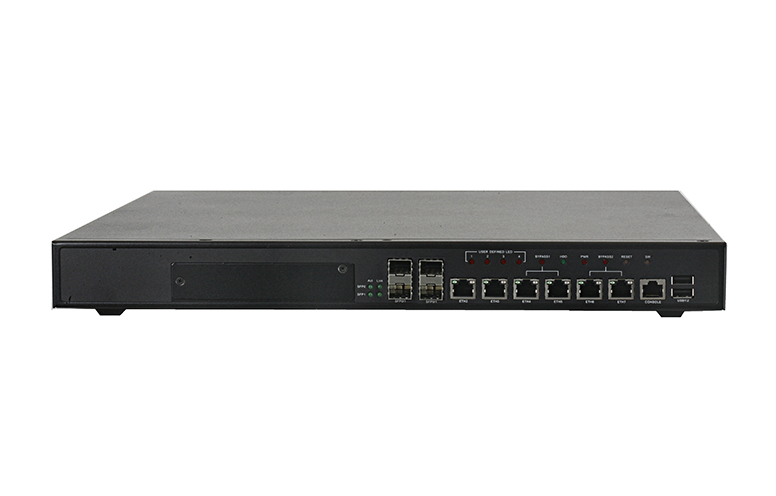

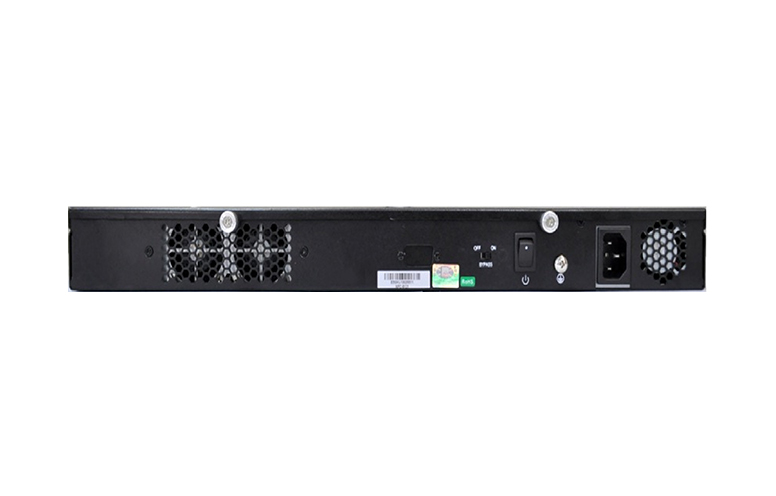

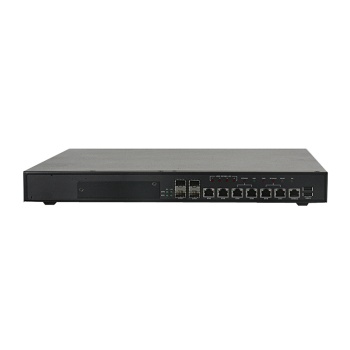

EVOC NPC-8118-02 1U Main stream Intel® C206 Chipset

Features

• Intel® LGA1155 package Xeon/Sandy Bridge/Ivy Bridge CPU
• Four 240-Pin standard DDRIII 1066/1333MHz DIMM memory slots, supporting un-buffered ECC memory or Non-ECC memory, with a maximum memory capacity of 32GB
• 1 x CF card, 1 x IDE DOM, 1 x 3.5" or 2 x 2.5" SATA HDD as storage, supporting RAID levels
• 6 x 1000Mbps electrical port and 4 x 1000Mbps SFP port, supporting 2-group network Bypass
• The platform supports up to 18 1000Mbps network ports using PCIe slot expansion
• The front panel facilitates customization using PVC film
• VGA port for debugging purposes
• Only two screws to open the chassis, convenient for maintenance
• External Bypass switch to facilitate maintenance

Datasheet NPC-8118-02
