Features
- Low cost
- Compact size
- DIN rail mountable
- Input: 100 to 240 VAC
- Output: 24 VDC, 0.45 A

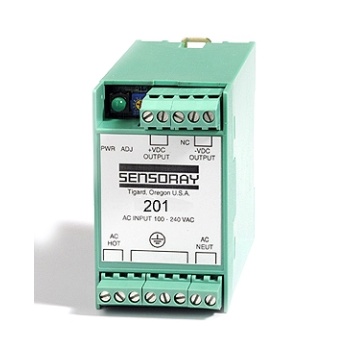

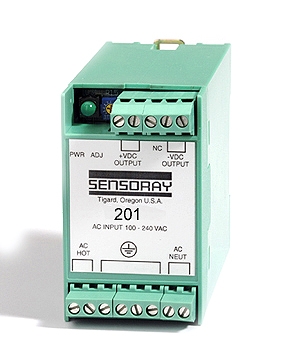

Model 201 converts AC power from the mains into 24 VDC. It can power up to two model 2518 or 2519 Ethernet sensor interface modules. The unit mounts onto standard, 35 mm DIN rails in seconds by simply snapping it on. A green LED next to the output terminals indicate whether output voltage is available, and a trimpot allows adjustment of the 24 V output voltage by ±5%.

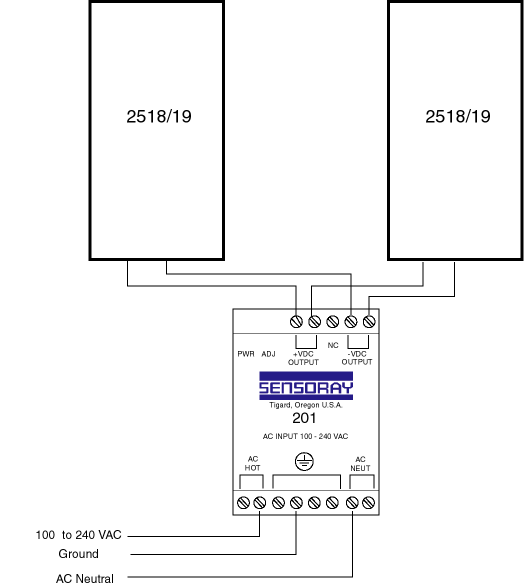

Application Example
Accessories
| Model | Description |
|---|
| 2518DIN |
8-Channel Smart Sensor Interface, DIN rail mountable |
| 2519DIN |
16-Channel Smart Sensor Interface, DIN rail mountable |
Specifications
| Input voltage range |
100 to 240 VAC (50/60 Hz) |
Maximum output current
(at 120 VAC input) |
.45 A (at 24 VDC) |
| Fuse type |
0.8 A |
