SENSORAY Model 2453/2454 IP video encoder/decoder server

Features

• Two independent output streams from one video input
• H.264 HP@L3, MPEG-4 ASP, MJPEG video compression
• Supports MPEG-TS, H.264 VES, MJPEG over HTTP
• Streams via HTTP, RTP, RTSP, UDP
• G.711 or AAC-LC audio
• Includes RS-232/422/485 port and two GPIOs

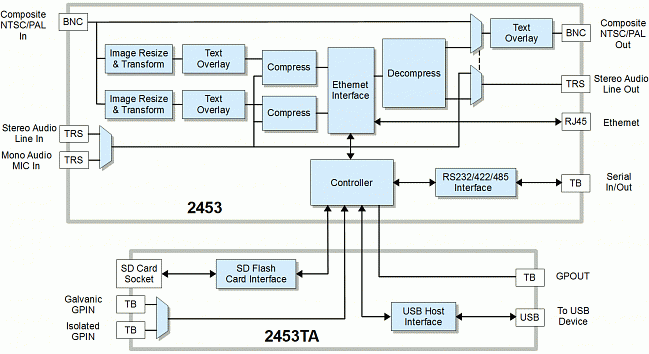

Model 2453 is a compact IP video server that captures and compresses analog audio and NTSC/PAL video and sends the resulting streams over Ethernet. It can simultaneously produce two output streams with independent resolutions, frame rates, and bit rates, allowing it to be easily tailored to match network capabilities and application requirements. It provides a number of advanced features including deinterlacing with motion artifact removal, real-time text overlay, and image rotation and mirroring.

Stream Formats

Video can be output as an elementary stream or multiplexed. A variety of stream formats are supported, including MPEG-4 (.m4v) and H.264 (.264 or .h264) elementary streams, MP4 (.mp4) and MPEG-2 transport stream (.ts) containers, and MJPEG (.mjpg or .mjpeg). The transport stream uses AAC audio and H.264 or MPEG-4 ASP video.

Real-Time Text Overlay

The overlay generators can position up to 160 characters of text anywhere in the video frame. A unique text string, consisting of mixed constant and variable text, may be defined for each overlay generator. Text variables such as time, date, and frame count are automatically updated every video frame.

Peripherals

A flexible serial port, configurable as RS232, RS422 or RS485 is provided for camera PTZ control or general-purpose use. Several other peripherals can be easily added with an optional 2453TAS board:

• One digital input and one output, useful for alarms, lighting control or general purpose use. The output is optically isolated and the input may be optically isolated or galvanically coupled.
• A host USB port* for connection to external storage or wireless LAN.
• An SD card socket that allows a removable flash card to serve as local storage for captured video and audio — useful for mitigating network congestion problems when data losses are unacceptable or for gapless monitoring during closed network access windows.
• A battery that enables retention of date and time when the unit is not powered.

Decoder

Model 2453 can also perform as a decoder, receiving a compressed audio/video stream over the network and converting it to standard analog video and audio signals (decoding is guaranteed only for streams captured with the 2453).

Web Server

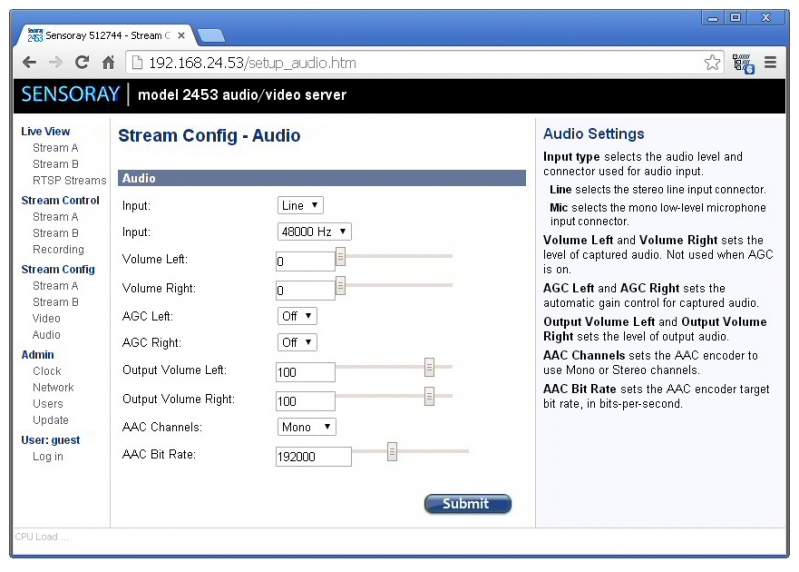

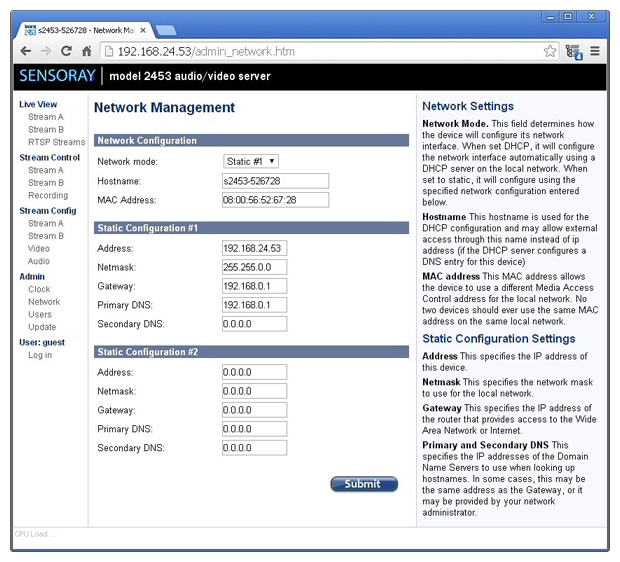

The built-in web server allows device configuration and control, user management, and live stream previewing on any web browser.

Customization of the 2453 user interface is easy. Controls that are not required can be hidden and page headers can be replaced with custom graphics.

Packaging Options

Model 2453 is available in four configurations:

• 2453TAS – model 2453 + model 2453TA in metal enclosure.
• 2453S – model 2453 is in a low-profile metal enclosure;
• 2453 – a board version;
• A miniature version of the product, model 2454, weighing less than one ounce, provides the same functionality as model 2453 using high-density headers instead of standard connectors.

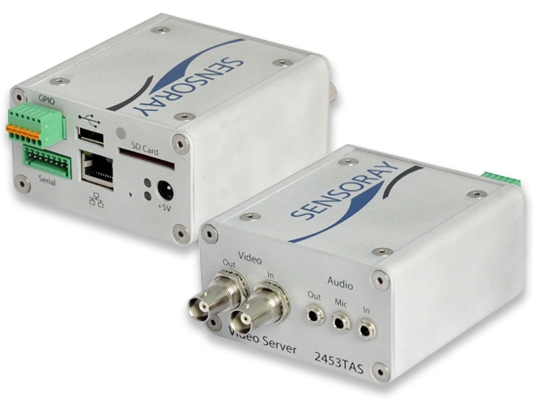

2453TAS front and back views

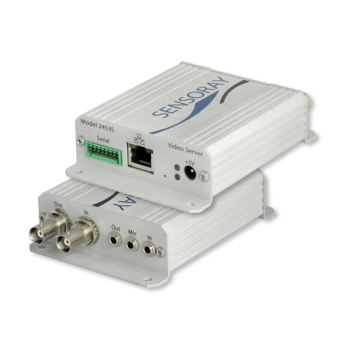

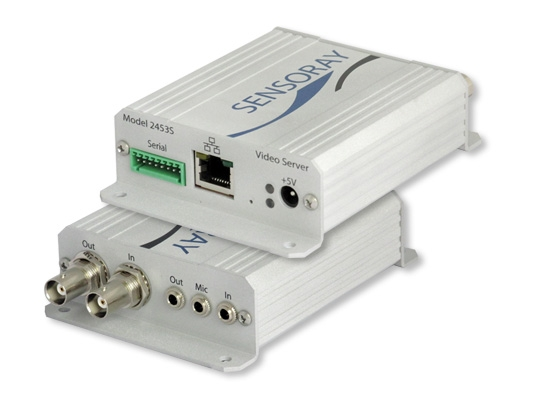

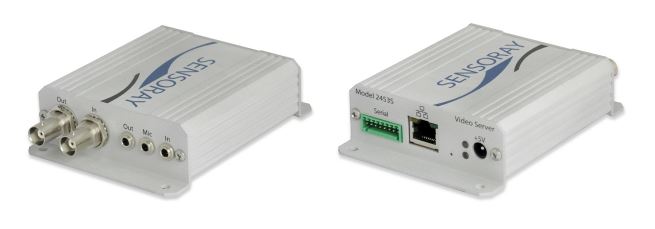

2453S front and back views

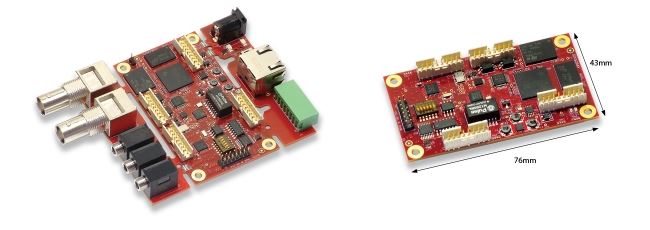

2453 board (left) and 2454 miniature version

Specifications
