Features
- Input: 9-36 VDC
- Outputs: +5 VDC at 4 A, ±12 VDC at 0.42 A (207-02)
- -25°C to 71°C operating range
- 1500 V input/output isolation

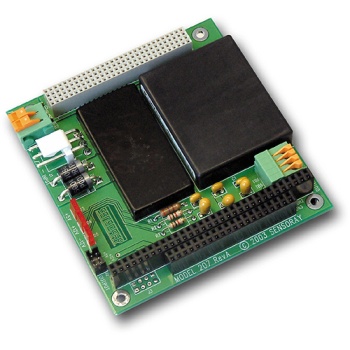

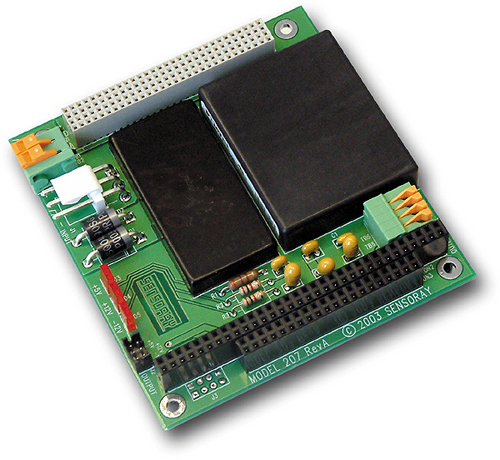

SENSORAY's model 207 PC/104 Isolated Power Supply features a wide input voltage range and up to three isolated outputs rated at +5 VDC at 4 A, +12 VDC at 0.42 A, and -12 VDC at 0.425 A..
Three different terminations are provided for applying input power. One of these is a spring-loaded terminal block that accepts two wires so that input power can be connected directly, without the use of a connector. There are two output terminations for supplying regulated power to external devices; these are typically used for devices such as a cooling fan and RF amplifier (e.g., model 2400-500RF).
Models
207-01 Isolated power supply, 5V
207-02 Isolated power supply, 5V and ±12V
Specifications
| Input power |
|---|
| Input voltage range |
9-36 VDC |
| Input current |
3 A (at 9 V input)
0.68 A (at 36 V input) |
| Output power |
|---|
| Total output power |
20 W maximum with forced external cooling |
| Efficiency |
75% (at 9 V input)
82% (at 20 V input) |
Output voltages and currents
(maximum ratings) |
+5 VDC at 4 A
+12 VDC at 0.42 A
-12 VDC at 0.425 A |
| Output accuracy |
±0.24 V for +12 V output
±0.24 V for -12 V output
±0.1 V for 5 V output |
| Input/Output isolation |
1500 V maximum |
| Output ripple |
Pk - Pk 150 mV on 5 V
100 mV on 12 V |
| Line regulation (full input voltage rating) |
±0.12 V for +12 V output
±0.12 V for -12 V output
±0.05 V for +5 V output |
| Load regulation (full load swing) |
±0.12 V for +12 V output
±0.12 V for -12 V output
±0.025 V for +5 V output |
| Protection |
Reverse input polarity opens resettable fuse
Output short circuit protected |
| Switching frequency |
83 kHz |
| Environmental |
|---|
| Operating temperature |
-25 to 71 °C |
| Storage temperature |
-20 to 85 °C |
